Warehouse Rack Layout&Design
After first consulting, after all the demand details are clear, our engineer can make the industrial rack design and layout accordingly.
From simple warehouse shelving to the complex mezzanine racking or pallet shuttle racking, all the solutions can be provided in CAD drawing in detail for our customers’ reference.
Divided into selective pallet racking, VNA pallet rackingdouble deep pallet racking, drive-in pallet racking, push back pallet racking, pallet shuttle racking;

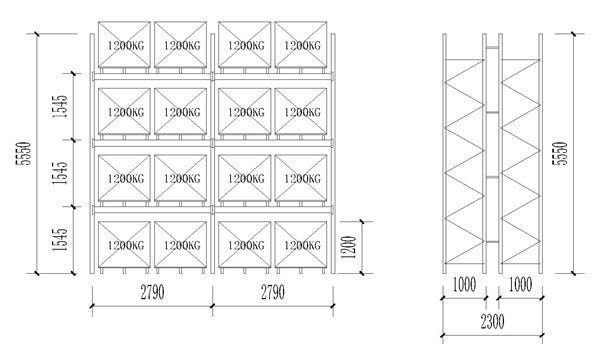

The most common one-selective pallet racking, just need to know the warehouse size, and pallet size you use, we can finish the warehouse rack layout design distribution.

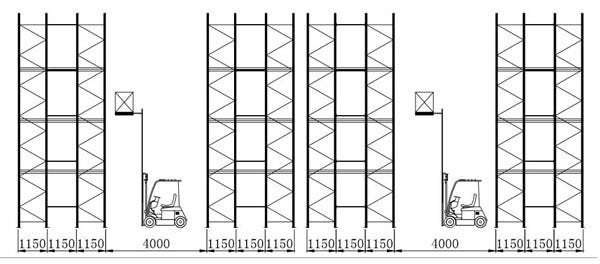

Warehouse racking system design

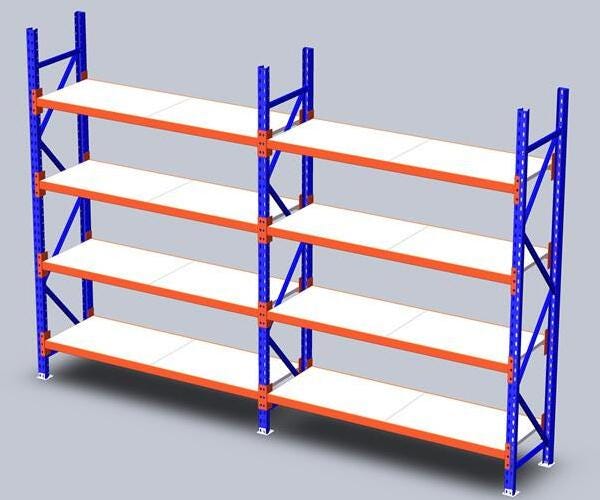

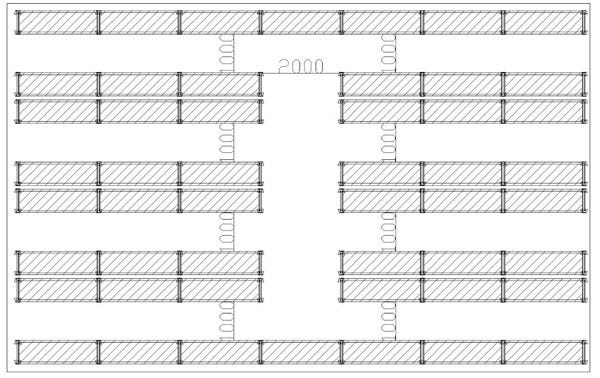

For the hand-loaded Solution, after we got the approximated cartons or boxes size you need to keep, can suggest the kinds of shelving to you easily, including Longspan shelving, Boltless shelving, light duty racking system, medium duty racking layout system
Longspan Shelving Drive In Racking System Design

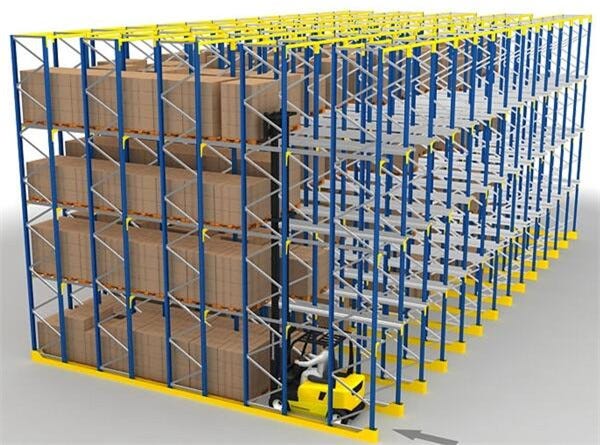

Drive in racking design is a high-density solution, need the forklift to go into the deep bay to load and unload the pallets. No need aisle in the middle in a certain area, one bay next to another, space saved greatly.

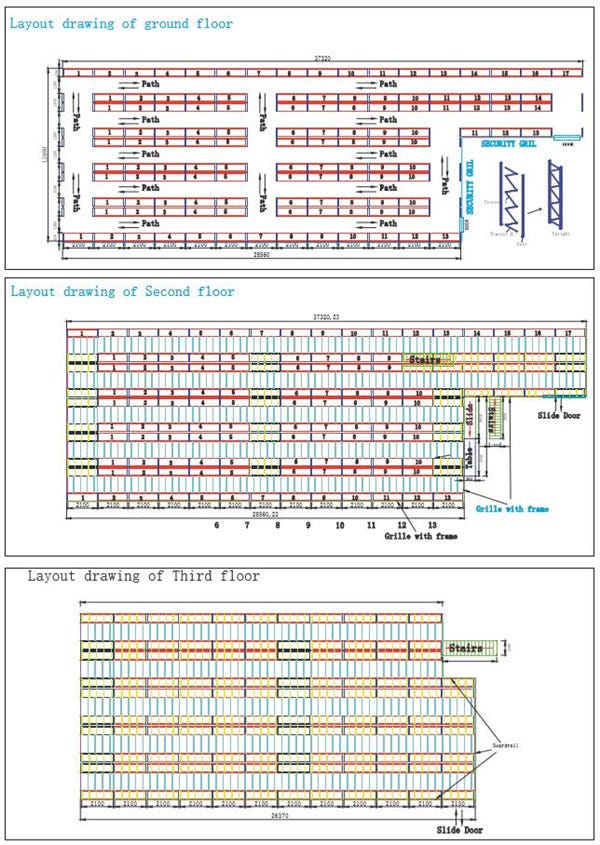

Mezzanine Floor Design Layout
Metal mezzanine systems provides a multi-level system that significantly increases your storage capabilities by doubling even tripling the warehouse space. Mezzanine design for warehouse utilizes most bulk and space saver sizes and configurations in a variety of combinations to take full advantage of valuable warehouse space. Mezzanine design can be easily expanded, moved, or modified for future requirements. Combined with a full range of accessories, such as staircases, handrails, safety gates even a lift.
For this industrial mezzanine floor design system, we need to know the racking parts: size(L/W/H), how many levels, Aisle size to leave, load capacity: ?kg/level; for the flooring parts: load capacity: ?kg/square meter.
As a shelving supplier, we will offer high quality types of warehouse rack & shelf for clients, if you have needs, please contact us.
